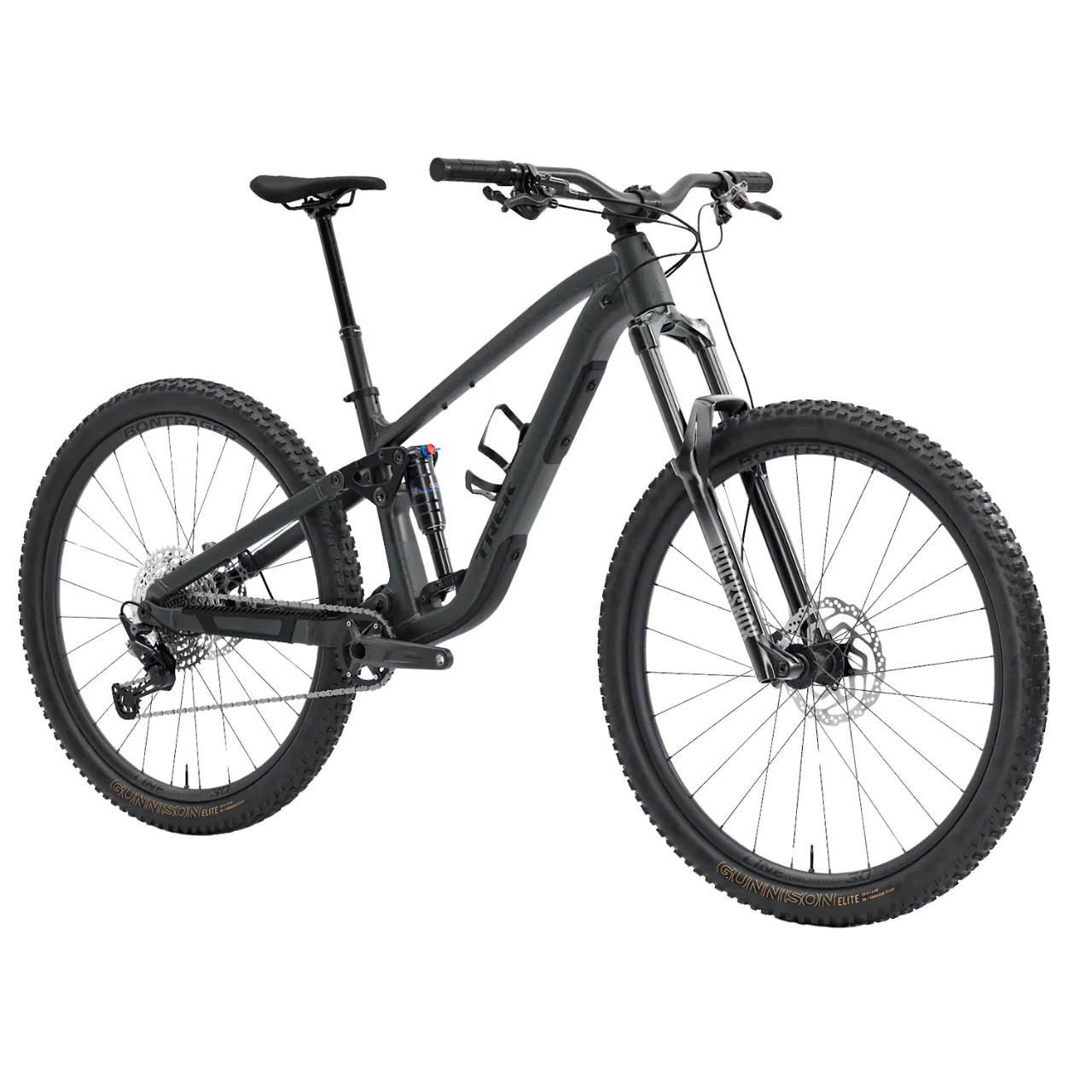

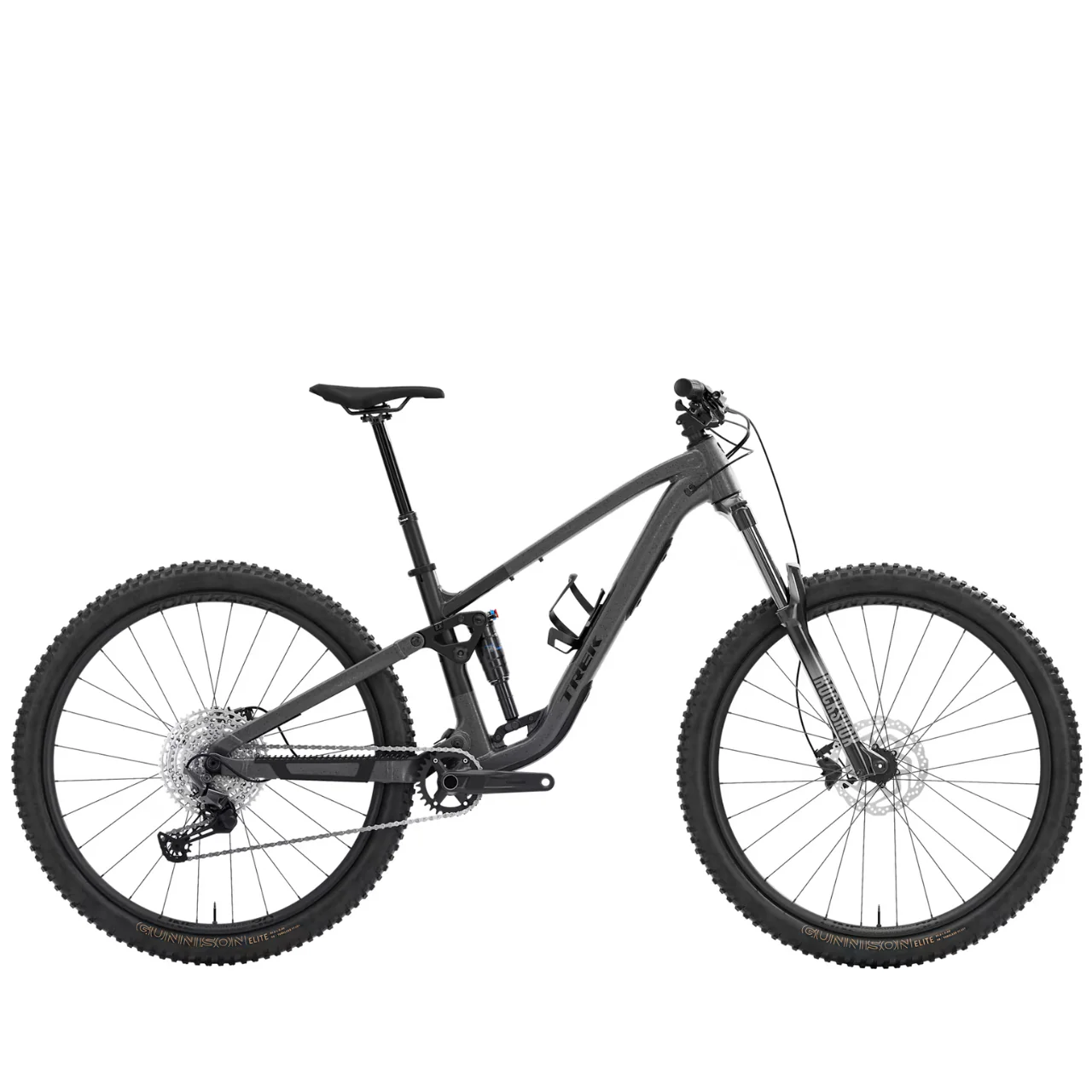

Fuel EX 5 29

$2,799.00

Category:

Key Features

  • Capable and stiff 130mm frame is 29″ or 27.5+ compatible
  • Boost148/110: stronger wheels, more tyre clearance, shorter stays
  • Exclusive suspension tech with ABP and Full Floater
  • Straight Shot stiffness, Knock Block frame defence

ENQUIRY

SPECIFICATION

Description

Additional information

  • Frame Material
    Aluminium
  • Frame
    Alpha Platinum Aluminium
    G2 Geometry
    Control Freak internal routing
    130mm
    ABP
    Boost 148
    downtube guard
    E2 tapered head tube
    EVO link
    Full Floater
    ISCG 05
    Knock Block steerer stop
    Mino Link
    PF92
  • Bottom bracket
    PF92
  • Cassette
    10-speed
    11-42
    Shimano HG50
  • Chain
    KMC X10
  • Shifters
    Shimano Deore M6000
    10-speed
  • Front Derailleur
    Shimano Deore M6020
  • Rear Derailleur
    Shadow Plus
    Shimano Deore M6000
  • Crank
    36/22
    Race Face Ride
  • Saddle
    Bontrager Evoke 1.5
  • Seatpost
    12mm offset
    2-bolt head
    31.6mm
    Bontrager SSR
  • Handlebar
    15mm rise
    31.8mm
    750mm width
    Bontrager alloy
  • Wheels
    15mm alloy axle front hub
    32-holes
    Bontrager alloy
    Bontrager Connection
    Bontrager sealed cartridge bearing alloy axle
    Boost148 rear hub
    double walled rims
    double-walled alloy rims
  • Front Suspension
    E2 tapered steerer
    Boost110
    G2 Geometry w/51mm offset
    130mm travel
    RockShox Sektor Silver RL
    Solo Air
    TurnKey lockout

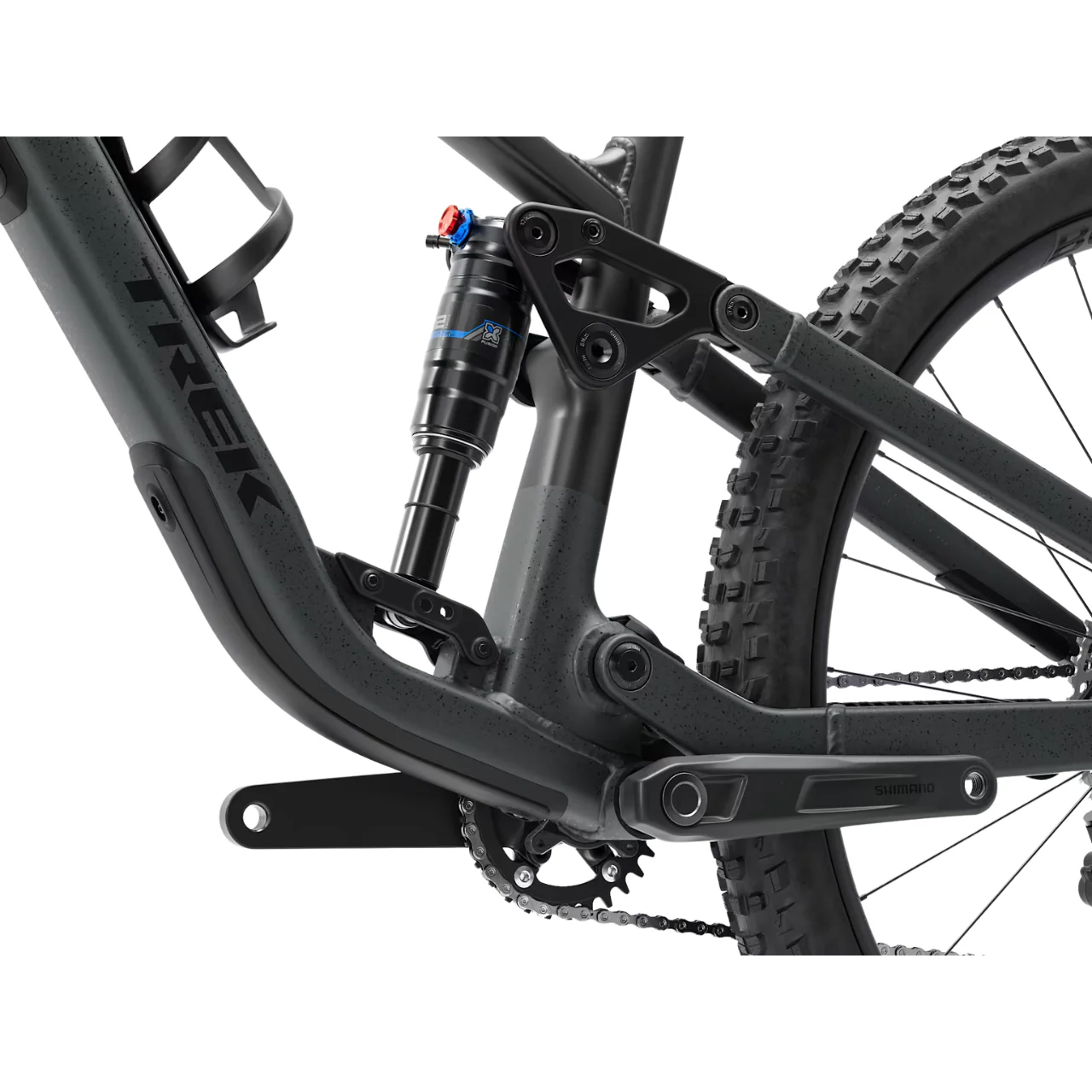

  • Rear Suspension
    RockShox Deluxe RL
    210x52.5mm
  • Front Hub
    15mm alloy axle
    Bontrager alloy
  • Rear Hub
    Bontrager sealed cartridge bearing alloy axle
    Boost148
  • Rims
    Bontrager AT-650 32-hole double-walled alloy
  • Colour
    Trek Black
  • Spokes
    Bontrager 14g
  • Tyres
    29x2.30"
    Bontrager XR3
  • Size
    18.5 in
  • Grips
    Bontrager Race
  • Headset
    1-1/8" top, 1.5" bottom
    Knock Block integrated
    sealed cartridge bearing
  • H'Stem
    0 degree
    31.8mm
    Bontrager Ryhthm Comp
    Knock Block
  • Brakes
    Shimano M315 hydraulic disc
