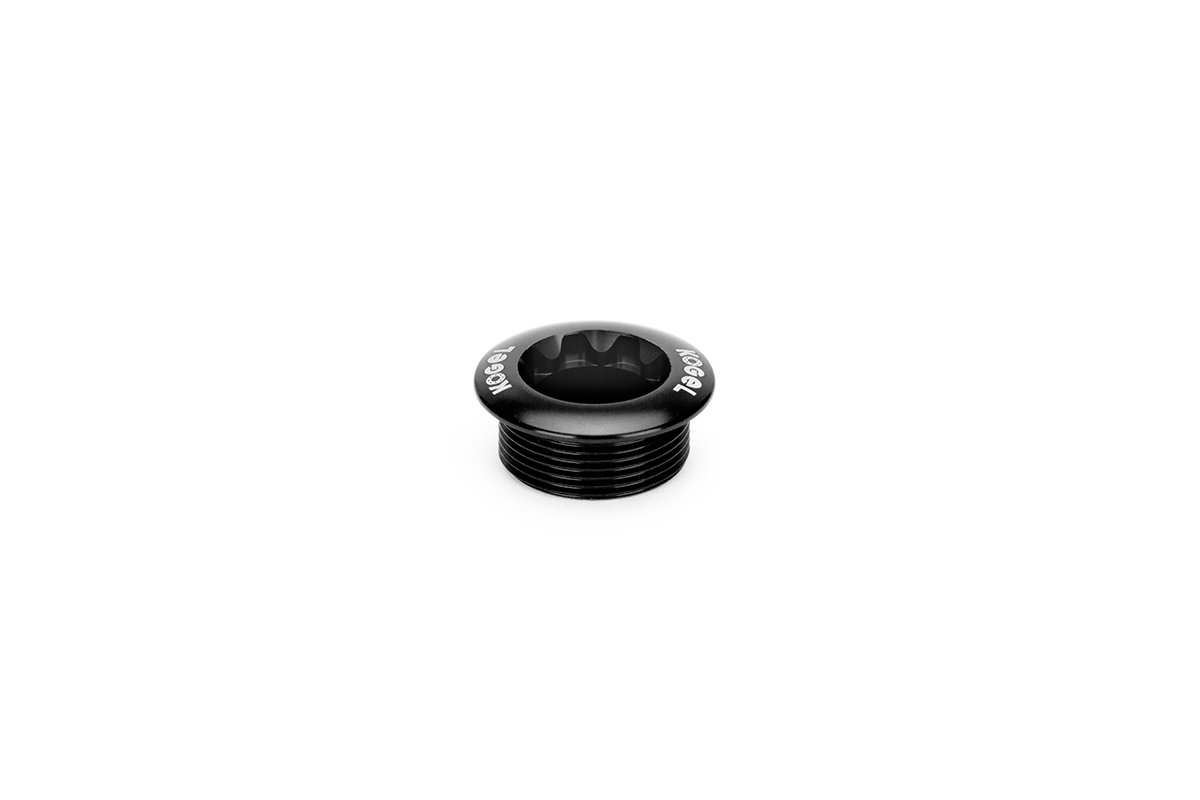

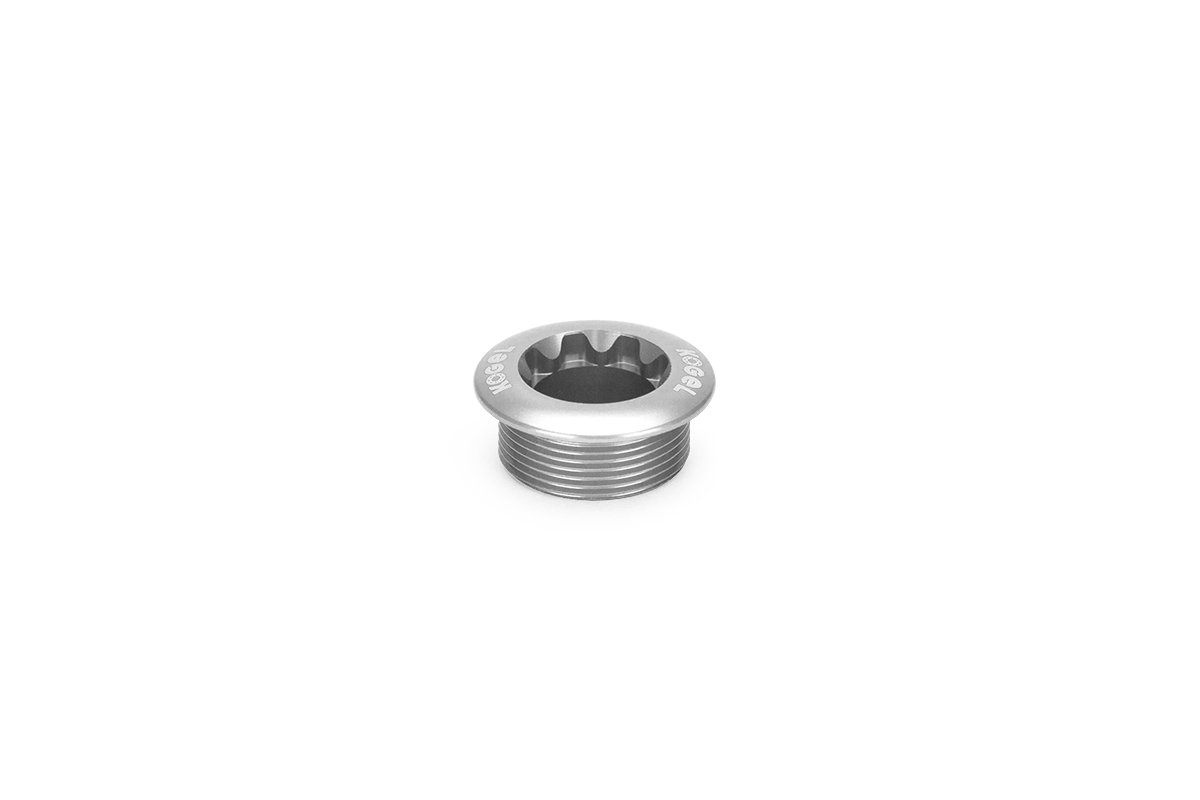

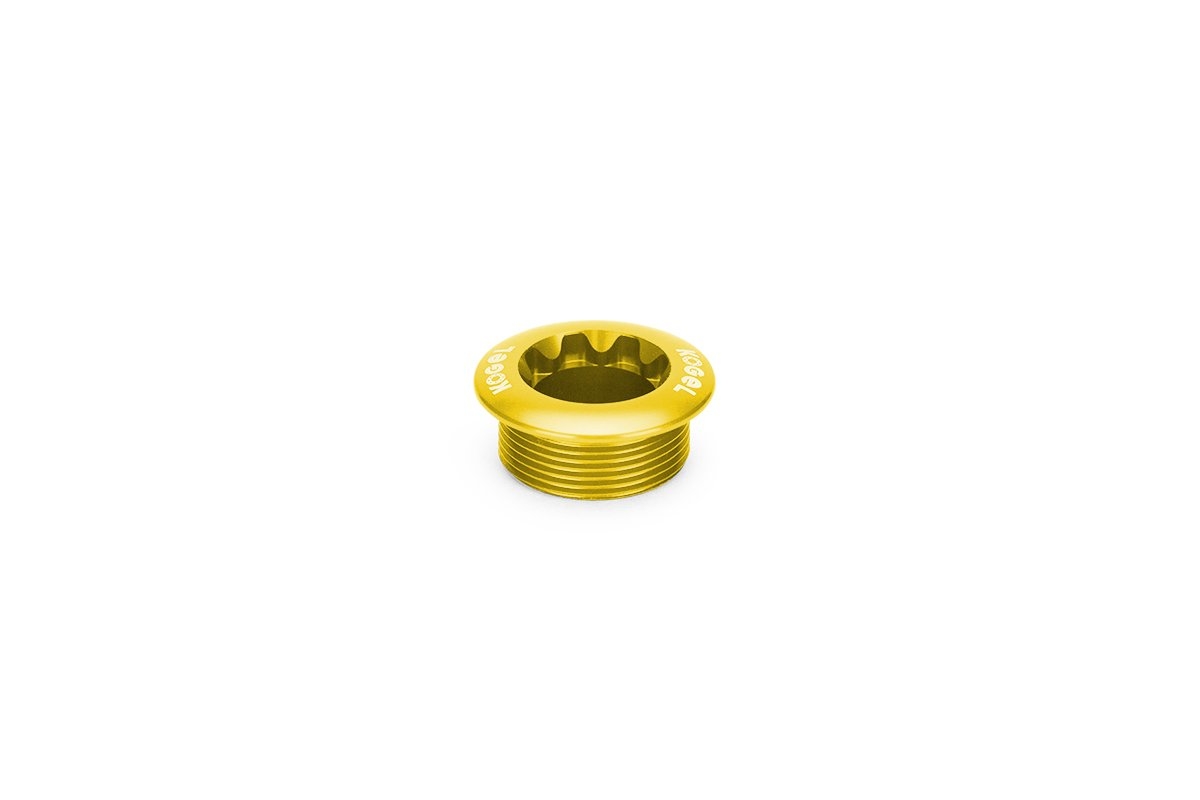

KOGEL Shimano Crank Arm Fixing Bolt – Short


Looking for another opportunity to increase the durability of your drivetrain and customize the look of your Shimano crankset?

Kogel’s Shimano crank arm fixing bolt is here to help keep the crank arm bolts from backing out.

Made from the T6061-T6 aluminium alloy, our Shimano fixing bolt adjusts the side load on the bearings and holds the arm in place while you tighten up the crank cinch bolts to the proper torque spec.

Categories: ,

Key Features

Thread the fixing bolt into the crank arm, adjust it until all the lateral play in the crank arm and spindle has disappeared. Back off the bolt a quarter or half turn to make sure there is no sideload on the bottom bracket bearings.

You’re looking for the sweet spot between not being able to rock the cranks back and forth in the bottom bracket and not torquing it down tightly, which would cause friction and premature wear in the bearings. After this, tighten down the cinch bolts to the recommended torque, alternating between the two bolts.

Installing requires Shimano II Crank Arm Bolt Tool TL-FC16 or similar and a torque wrench with 5mm bit for installation and removal

Choosing the Correct Length
Kogel offers two lengths of preload bolts. Check your existing bolt to verify size.

Short: compatible with current generation HollowTech II off road cranksets (GRX, XT, SLX)

When in doubt, just remove your current bolt and visually compare it to the thread length of the preload bolts using the product images.
